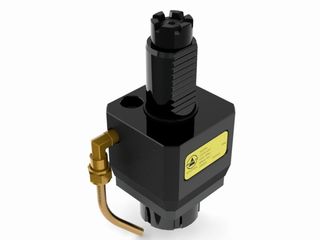

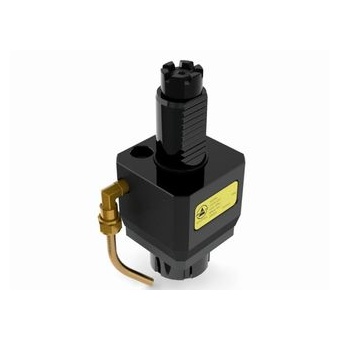

◎ VDI60-MT-ER50 Axial Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ R.P.M.：Max. 6,000 RPM

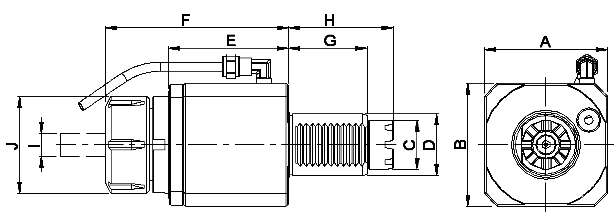

| Model No. | A | B | C | D | E | F | G | H | I | J | N.W. (KG) |
| THB-A07-60D | 104 | 104 | 53.2 | 60 | 110.5 | 152 | 78 | 100 | ER50(12~34) | 78 | 9.6 |
Unit:mm
