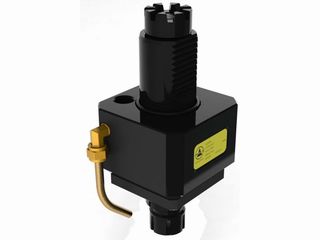

THB-A15-40D VDI40-MT-TER20 軸向動力刀座(ER彈性攻牙)

產品介紹

m_prod2014042500065
◎ VDI40-MT-TER20 Axial ER Tapping Driven Tool Holder◎ Tool Holder is produced in accordance with DIN 69880.◎ Driven Coupling is according to SPUR MT TOEM.◎ ER Collet is according to DIN6499.◎ For left hand and right hand turret.

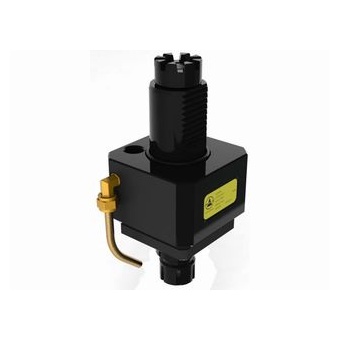

THB-A15-40D VDI40-MT-TER20 軸向動力刀座(ER彈性攻牙)



下載 DWG STP PDF
  • 描述
  • IM_EXTRA_TAB_ADD1
  • 規格

◎ VDI40-MT-TER20 Axial ER Tapping Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.


◎ R.P.M.：Max. 3,000 RPM

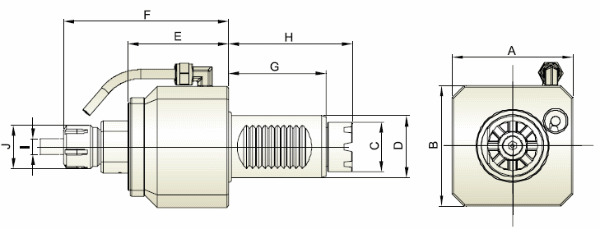

Model No. A B C D E F G H I J N.W. (KG)
THB-A15-40D 78 78 32 40 63 106 51 68 M3~M12 34 3.1

Unit:mm
