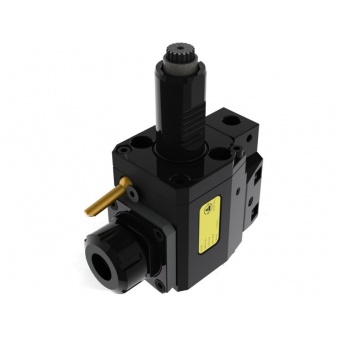

THB-B06.92-50BI VDI50-5480-ER40 徑向動(dòng)力刀座 Int.

產(chǎn)品介紹

prod2014042100043
prod20140421000432020-06-18_10_30_09
◎ VDI50-5480-ER40 Radial Driven Tool Holder_Int. 92mm ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 5480. ◎ ER Collet is according to DIN6499. ◎ For left hand and right hand turret. ◎ Further option : 6000 RPM ...了解更多

THB-B06.92-50BI VDI50-5480-ER40 徑向動(dòng)力刀座 Int.



下載 DWG STP PDF
  • 描述

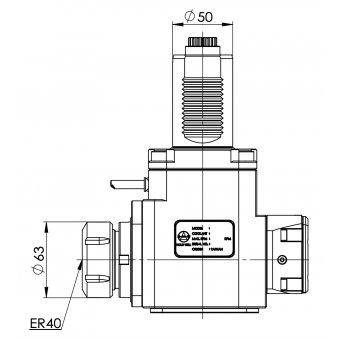

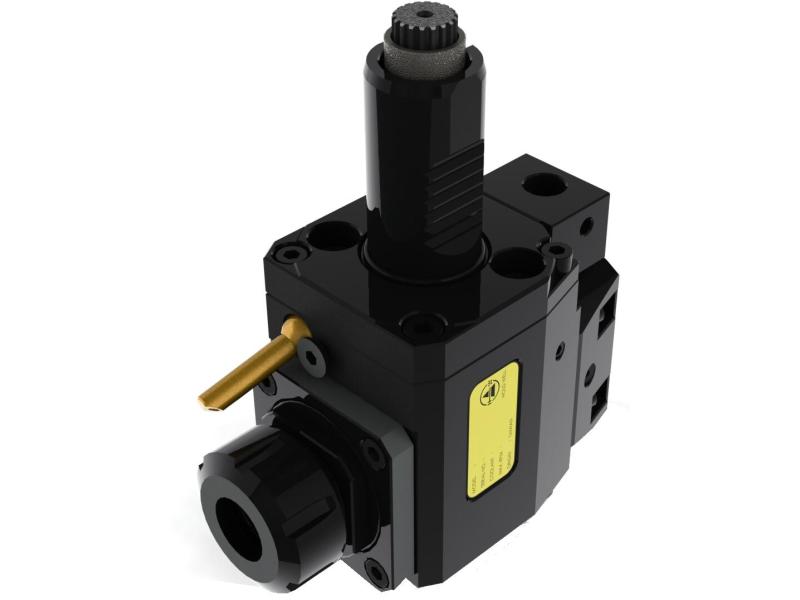

◎ VDI50-5480-ER40 Radial Driven Tool Holder_Int. 92mm

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 5480.

◎ ER Collet is according to DIN6499.

◎ For left hand and right hand turret.

◎ Further option : 6000 RPM
