THB-B04.55-30BI VDI30-5480-ER25 徑向動力刀座 Int.

產品介紹

prod2014041900003

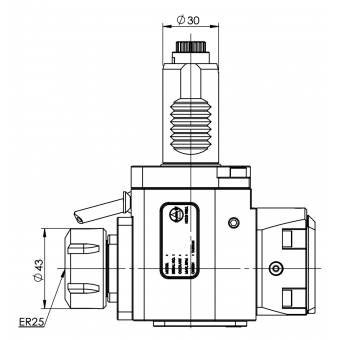

prod20140419000032020-06-18_10_06_12

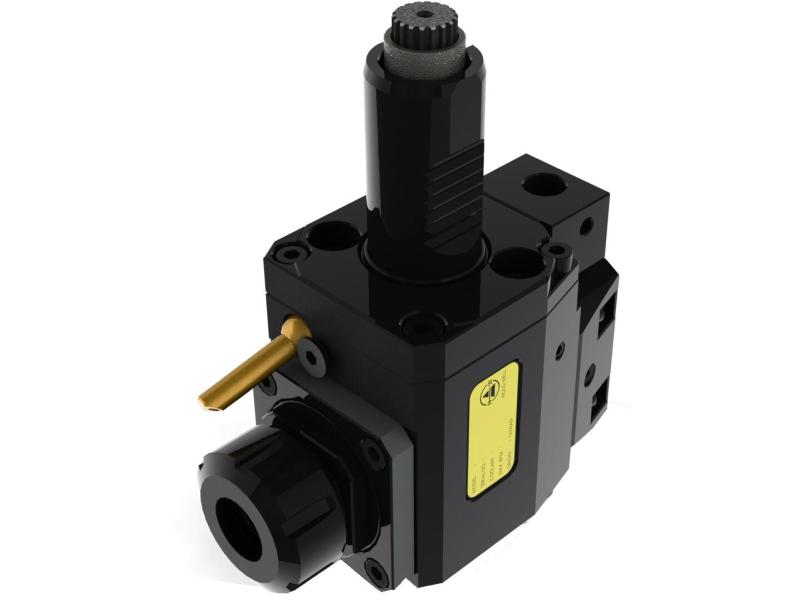

◎ VDI30-5480-ER25 Radial Driven Tool Holder_Int. 55mm ◎ Tool Holder is produced in accordance with DIN 69880. ◎ Driven Coupling is according to DIN 5480. ◎ ER Collet is according to DIN6499. ◎ For left hand and right hand turret. ◎ Further option : 6000 RPM ...了解更多

THB-B04.55-30BI VDI30-5480-ER25 徑向動力刀座 Int.



下載 DWG STP PDF
  • 描述

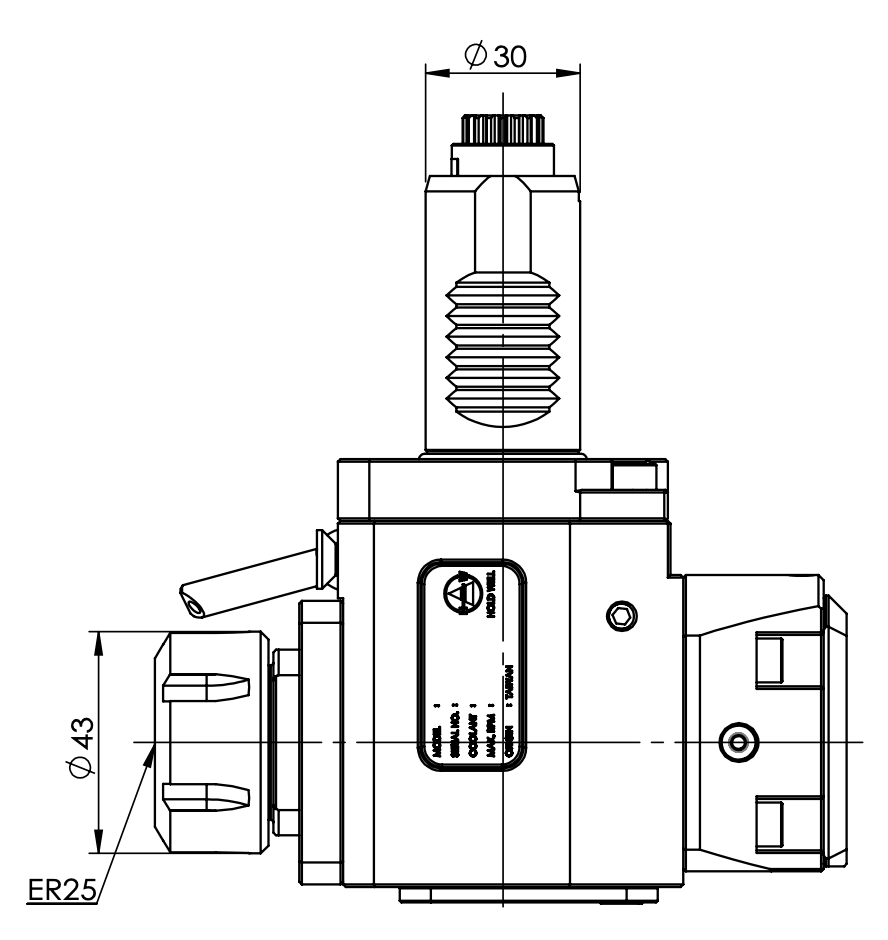

◎ VDI30-5480-ER25 Radial Driven Tool Holder_Int. 55mm

◎ Tool Holder is produced in accordance with DIN 69880.

◎ Driven Coupling is according to DIN 5480.

◎ ER Collet is according to DIN6499.

◎ For left hand and right hand turret.

◎ Further option : 6000 RPM
